L5 3DPile

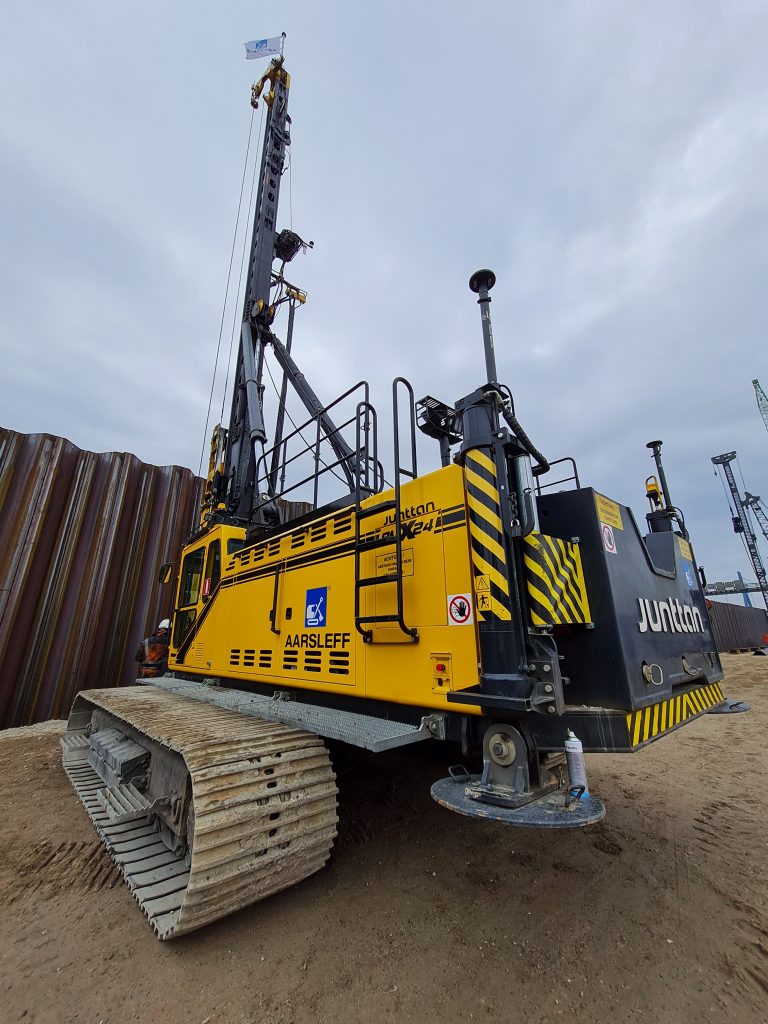

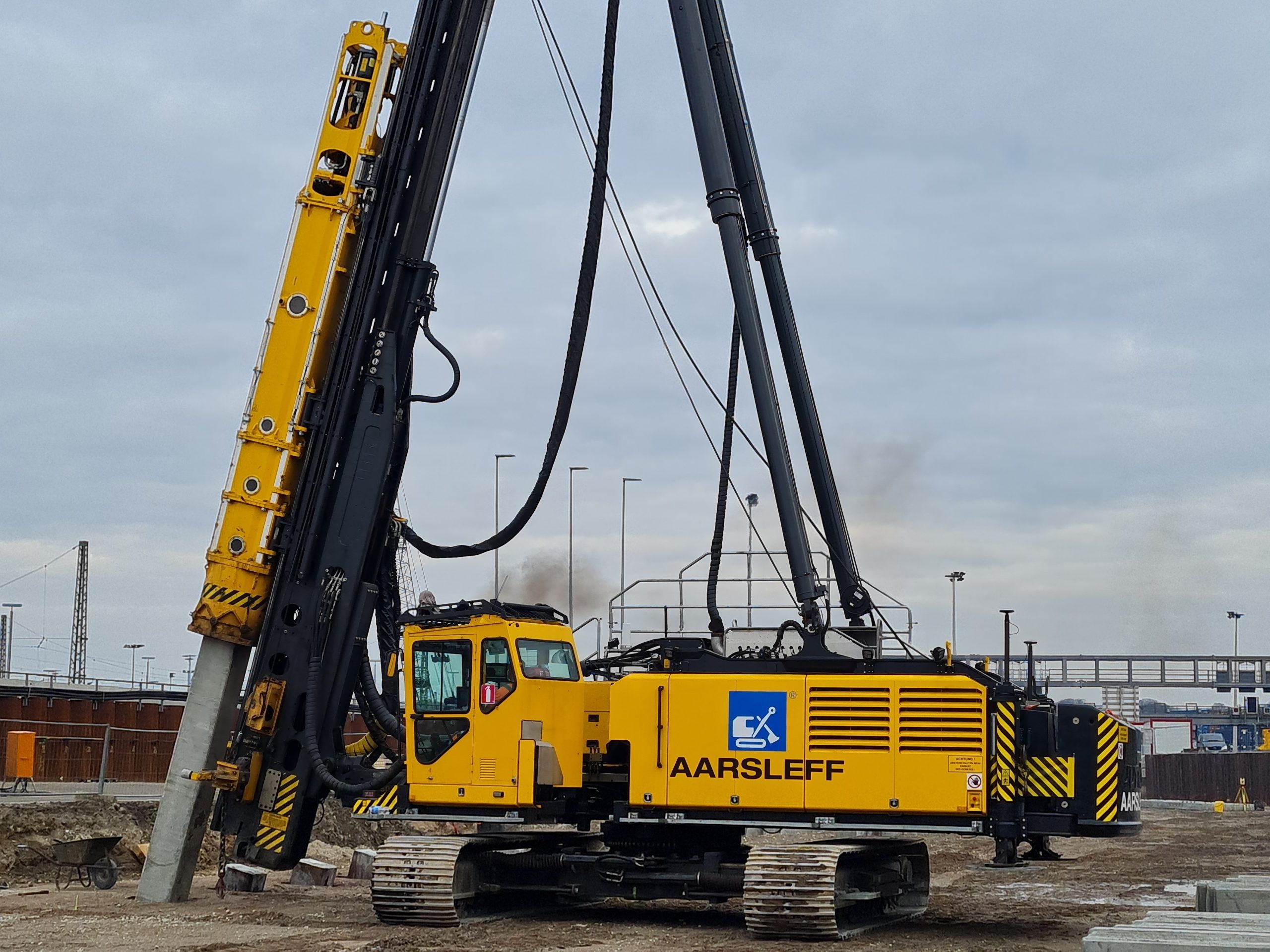

Our system is specifically developed to deliver precise GNSS positioning for pile driving rigs, but is also fully compatible with a wide range of specialist piling equipment, including deep stabilization rigs. By integrating multiple sensor types – from standard tilt sensors to advanced laser distance measurers – it offers a versatile and complete solution for all kinds of heavy machinery operating on complex foundation and ground engineering projects.
The system ensures centimeter-level positioning accuracy, enabling operators to drive piles or perform ground improvement with optimal precision. This not only enhances the overall quality and consistency of the work but also reduces the need for rework and manual measurement, saving both time and costs.

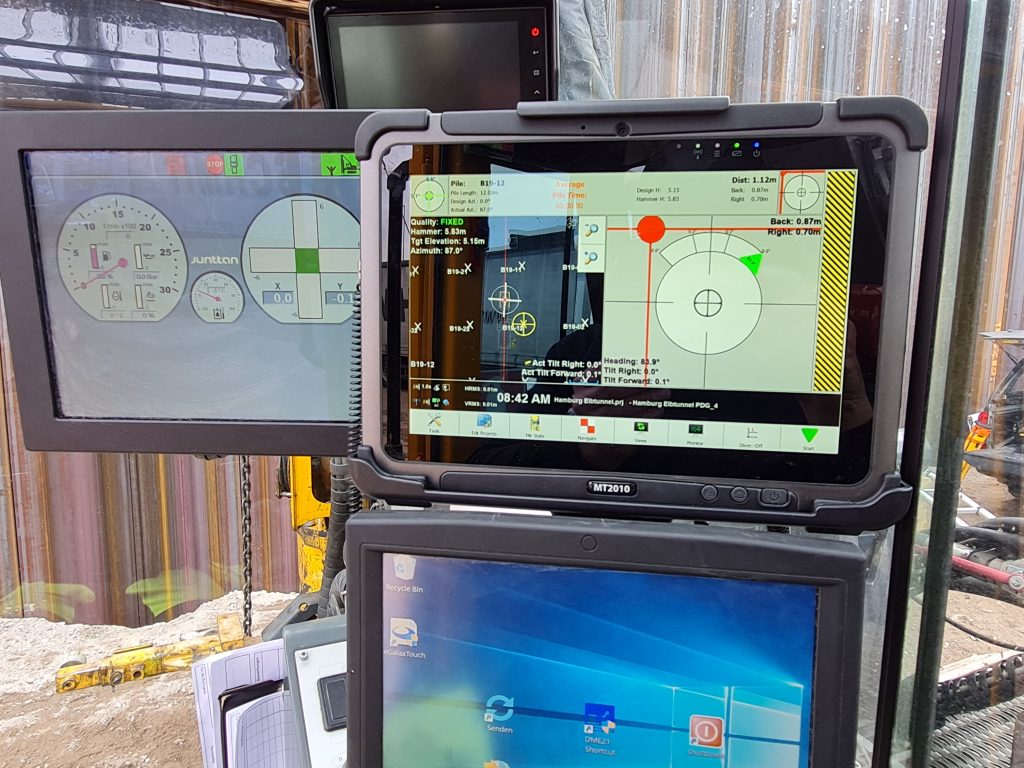

Whether working in infrastructure, industrial construction, or urban environments, the GNSS-guided system provides real-time feedback and visualization directly in the operator’s cabin. This improves safety, increases efficiency, and facilitates seamless documentation of all piling activities.
Downloads
-
Proven software
The same software as in our drill rig solutions from Carlson Software.
-
Full overview with cloud solution
Keep track of the project, share drilling / pile plans directly between the machines and create advanced reports in Carlson Command.
-
Clear information
The operator continuously receives complete information to facilitate the best possible alignment of the piles.
-
Quality assurance
Create reports directly in the software to account for the position, height and inclination. Great GNSS Positioning for Pile Driving rigs.
Components
-
Machine computer
Rugged Windows PC with 3D software. Choose between 10 "and 12" screen.
-
GNSS receiver
High-end dual GNSS receiver with support for all satellite systems: GPS, GLONASS, Galileo and Beidou. Gives you maximum performance.
-
Sensors
When mounting without an interface, we deliver the system with sensors built to be used in harsh environments where high accuracy is required.
-
Support agreement
1-year support agreement is included with the system. It gives you: Remote and telephone support, internet connection via Telia and access to upcoming software versions.
-
Installation
Complete installation and calibration.
-
Warranty
1-year warranty on all components.
Contact us for pricingKr
Get in touch to discuss the scope and solution your particular business needs.
